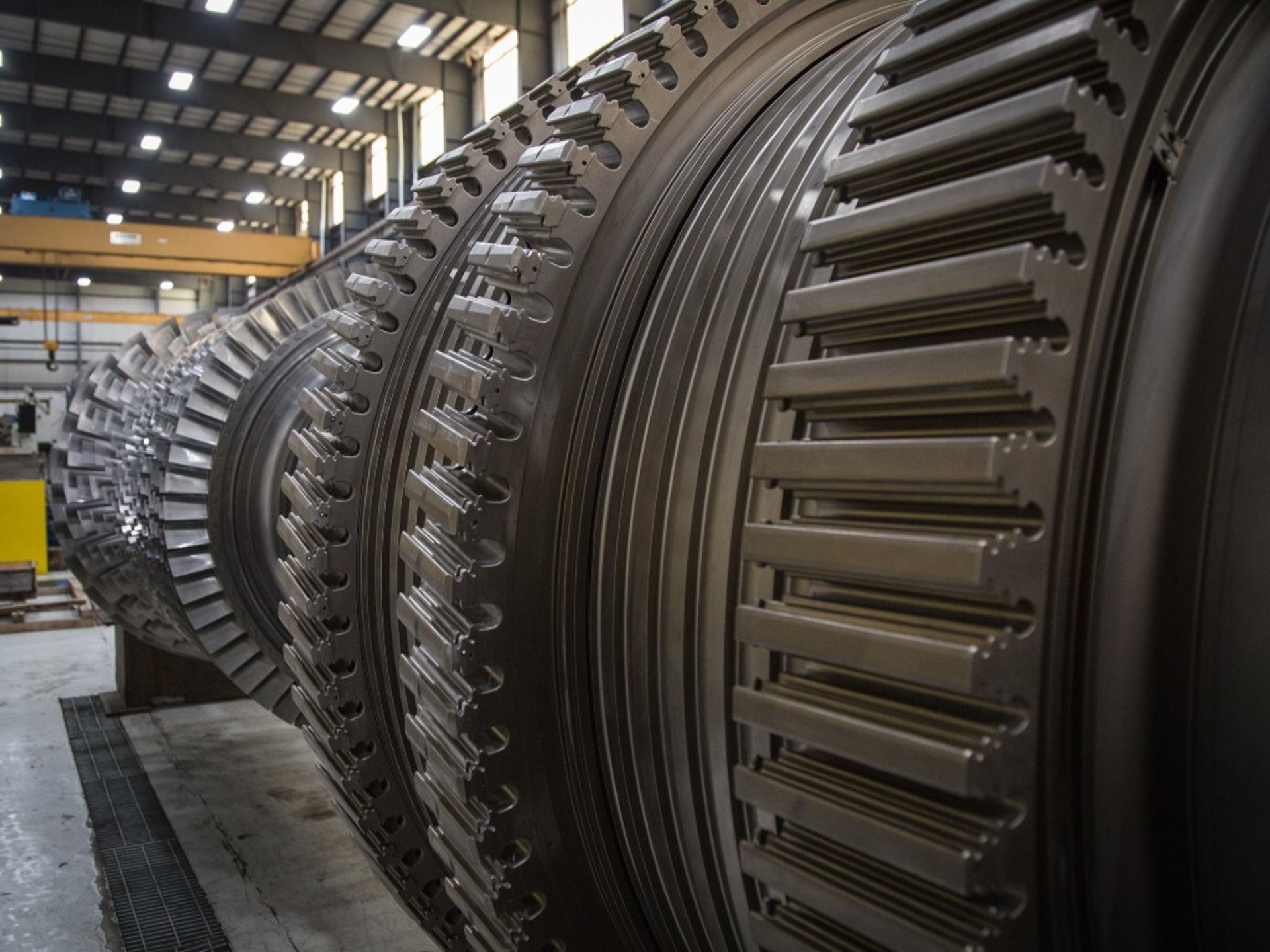

Verlängerung der Rotorlebensdauer

Unsere Lösungen für Altrotoren wurden speziell für alternde Flotten entwickelt, um Bedenken über Betriebsrisiken auszuräumen. Sie sind so konzipiert, dass sie die Anforderungen des Originalherstellers und das empfohlene Ende der Lebensdauer erfüllen oder übertreffen.

Entdecken gasturbinen

Verlängerung der Rotorlebensdauer

Unsere Lösungen für Altrotoren wurden speziell für alternde Flotten entwickelt, um Bedenken über Betriebsrisiken auszuräumen. Sie sind so konzipiert, dass sie die Anforderungen des Originalherstellers und das empfohlene Ende der Lebensdauer erfüllen oder übertreffen.

Entdecken Gasturbinen

Run your rotor for longer

There are more options than you might think when it comes to addressing your rotor end of life. Options beyond purchasing a new rotor, moving to a new technology, or risky used and grey market options.

You need a trusted partner to navigate these options.

Benefits of rotor life extension

There are significant advantages to staying in your current technology and choosing a rotor life extension over a change in frame type or technology, most notably cost efficiency and the carbon-friendly decision to reuse versus manufacture new.

EthosEnergy is the only non-OEM rotor option available for B/E/F class that uses OEM technology and materials. Key benefits include:

  • Cost management
  • Minimal turnaround time - no need for new permitting
  • Flexibility vs rigid OEM offering
  • Carbon-friendly (ESG friendly) by reusing existing assets vs new manufacture
Speak to one of our experts

A growing number of Frame 6 and Frame 7E/EA units are approaching the designed end of life according to Technical Information Letter (TIL) 1576 from the OEM. The TIL outlines the risk associated with exceeding hours and starts limits, including:

  • risk of failure and
  • serious injury to nearby personnel.



You could also face a loss of insurance or denied claims by operating beyond these limits:

  • 200,000 FFH
  • 5,000 FFS

A growing number of Frame 7 units are approaching the designed end of life according to Technical Information Letter (TIL) 1576 from the OEM. The TIL outlines the risk associated with exceeding hours and starts limits, including:

  • risk of failure and
  • serious injury to nearby personnel.



You could also face a loss of insurance or denied claims by operating beyond these limits:

  • 144,000 FFH
  • 5,000 FFS

Lifetime assessment (LTA)

  • TIL 1576 allows for a potential one-time extension beyond the FFH/FFS limits based on the results of an LTA. EthosEnergy’s qualified craftsmen and engineers can perform the LTA and determine the possible life extension based on results



Condition Based Life Extension (CBLE)

  • our qualified engineers perform a detailed evaluation of the rotor condition, associated risks, and recommendations for component replacement with a possible 50k-200k FFH extension

Phoenix Rotor™

  • A hybrid rotor with new and Certified Previously Operated (CPO)™ components certified for the equivalent of the life of a new rotor. Proven OEM design and materials are used for EthosEnergy Phoenix Rotor™ compressor and turbine rotor discs.



Certified Previously Operated (CPO)™

  • A rotor with a known pedigree that has been thoroughly inspected and tested at one of our centers of excellence. Certified for possible life up to 150,000 FFH.

Überholungen von Rotoren

DOWNLOAD OUR E-GUIDE

Reducing the risk of failure for your gas turbine rotor

End-of-Life-Lösungen

Equipment

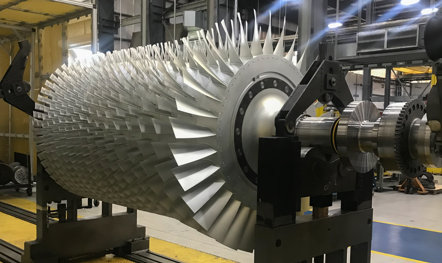

GE 7EA Turbine Section (Phoenix Rotor™)

7E/EA

Equipment

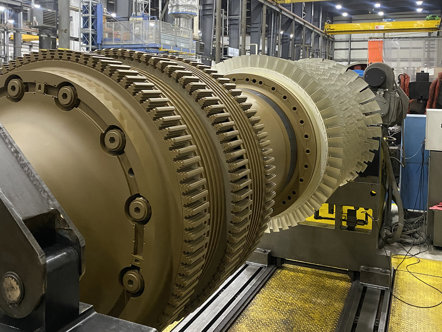

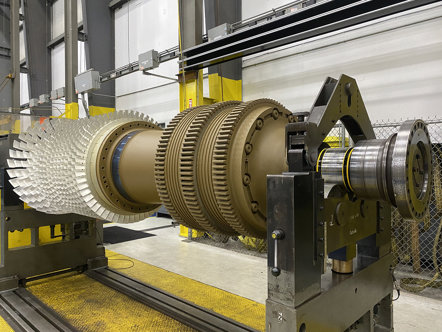

GE Frame 6B Unit Rotor (CPO™)

6B

Equipment

GE 7FA.03 Unit Rotor (Phoenix Rotor™)

7FA.03

Equipment

GE 6B Unit Rotor (Phoenix Rotor™)

6B

GE 7FA.03 Rotor zu verkaufen

EthosEnergy hat zwei neue Rotoren für eine GE 7FA.03 Turbine in Houston, Texas, zu verkaufen. Jeder Turbinenrotor war noch nie im Besitz oder in Betrieb und hat eine Lebensdauer von 144.000 Factored Fired Hours. Darüber hinaus bieten Ihnen die Rotoren mit unserer EcoLife™-Garantie nicht nur eine hervorragende Qualität, sondern auch ein sicheres Gefühl.

Die Langlebigkeit und Sicherheit der Rotoren hat für EthosEnergy höchste Priorität. Die Rotoren der GE 7FA.03-Turbine werden gemäß Industriestandards geprüft und vollständig ausgewuchtet.

Watch on-demand

OEM Pedigree with the flexibility of an ISP

OEM Pedigree with the flexibility of an ISP

EthosEnergy is the OEM for Fiat and Mature Westinghouse units, with over 65 years of OEM manufacturing experience. By applying our OEM design standards and processes, EthosEnergy manufactures combustion, gas path, compressor and rotor parts for these units as well as GE heavy frame gas turbines.

We have developed a suite of rotor solutions aimed at extending the life of your asset in compliance with OEM recommendations, allowing you to stay in your current frame type for longer without purchasing a newly manufactured rotor or changing technology.

Bewährte Lösungen für Gasturbinen

Ein umfangreiches Portfolio mit Beispielen aus der Praxis, die erhöhte Zuverlässigkeit, gesteigerte Leistung und branchenführende Qualität belegen.

View our relevant case studies

We do as we say. See examples of how we have worked with our customers to achieve real world results and discover what we can do for you.
